Haas Re-Value – the next level of USED MACHINES
Another service from Haas Factory Outlet Thailand : provides the best quality machines with a wide range of product lines to support various industries – To offer used machines which has been examined, calibrated and restored by our technical team. Using genuine spare parts from the factory, come together with certificate and warranty from Haas Factory Outlet Thailand : provides the best quality machines with a wide range of product lines to support various industries to ensure the quality, durability and worthiness of the machines You can be assured that all used machines from Haas Re-Value will be able to work at full efficiency.

    Machine Informaion : Model VF-1, S/N 4579
  • Travels(XYZ)
  • 508 x 406 x 508 mm.
  • Tools Capacity
  • 20
  • Table
  • 356 x 660 mm.
  • Max. Tool Diameter
  • 89 mm.
  • Max. Load on table
  • 1,812 Kg
  • Max. Tool Weight
  • 6 kg.
  • Rapids
  • 18 m/min
  • Machine Weight
  • 3,302 kg.
  • Max. Cutting
  • 7.6 m/min
  • Air Required
  • 113 LPM, 609 bar.
  • Tool Changer
  • BT40
  • Power Required (min)
  • 3 Phase 380-480V. 50 Hz.
    Machine Informaion : Model MINI MILL, S/N 1097335
  • Travels(XYZ)
  • 305 x 305 x 254 mm.
  • Tools Capacity
  • 10
  • Table
  • 305 x 914 mm.
  • Max. Tool Diameter
  • 89 mm.
  • Max. Load on table
  • 220 Kg.
  • Max. Tool Weight
  • 5.40 kg.
  • Spindle Speed
  • 6,000 rpm
  • Machine Weight
  • 1,542 kg.
  • Rapids
  • 15.2 m/min
  • Air Required
  • 100 psi, 113 L/min.
  • Max. Cutting
  • 12.7 m/min
  • Power Required (min)
  • 9 KVA / 3 PH 654-488 VAC with Earth
  • Tool Changer
  • BT40
    • Machine Option Lists
  • Coolant Pump Kit, 1/8 hp (93W), 24-gallon ( 91 liter ) tank
  • Internal-High-Voltage lsolation Transformer, 400 V, 50Hz,
  • Work Light

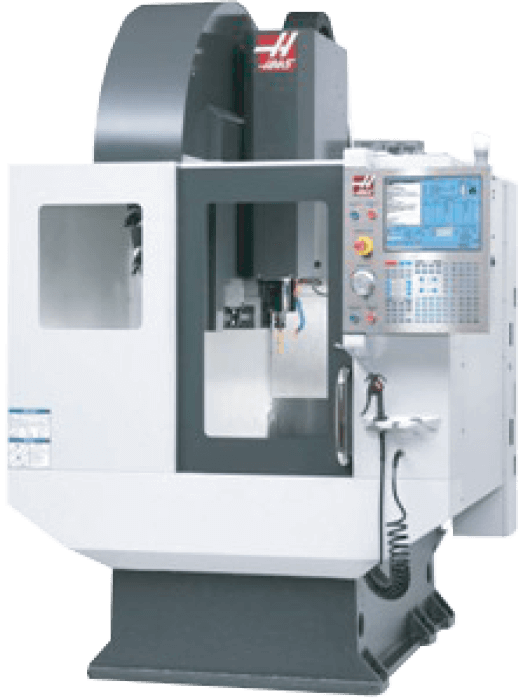

    Machine Informaion : Model DT-1, S/N 1076977
  • Travels(XYZ)
  • 508 x 406 x 394 mm.
  • Tools Capacity
  • 20+1
  • Table
  • 381 x 660 mm.
  • Max. Tool Diameter
  • 51 mm. with all pocket filled
  • Max. Load on table
  • 68 Kg.
  • Max. Tool Weight
  • 0.9 kg.
  • Spindle Speed
  • 15,000 rpm.
  • Machine Weight
  • 1,905 kg.
  • Rapids
  • 61.0 m/min
  • Air Required
  • 100 psi, 113 L/min
  • Max. Cutting
  • 30.5 m/min
  • Power Required (min)
  • 28 KVA / 3 PH 354-488 VAC with Earth
  • Tool Changer
  • BT30
    • Machine Option Lists
  • Haas intuitive Programming System.
  • Programmable Coolant Nozzie
  • Internal-High-Voltage lsolation Transformer, 400V, 50 Hz, 40/30 hp.

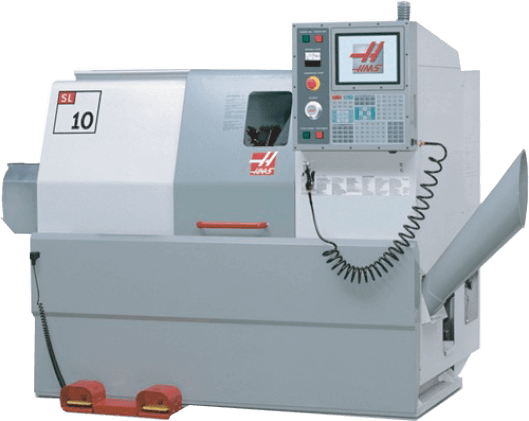

    Machine Informaion : Model SL-10, S/N 3086875
  • Travels(XYZ)
  • 159 x 356 mm.
  • Swing Diameter
  • 413 mm.
  • Spindle Speed
  • 6,000 rpm.
  • Spindle Nose
  • A 2 - 5
  • Max. Load on table
  • 220 Kg.
  • Max. Tool Weight
  • 5.40 kg.
  • Capacity Chuck
  • 165 mm. (6.5”)
  • Rapids 30.5 m/min
  • Max. Cutting Dia.
  • 279 mm
  • Max. Cutting Length
  • 356 mm
  • Machine Weight
  • 2,495 kg.
  • Power Required (min)
  • 14 KVA / 3 PH 354-488 VAC with Earth
    • Machine Option Lists
  • Tailstock for SL-10
  • Internal-High-Voltage lsolation Transformer,354-488 : 235V, 50/60 Hz, 20 hp
  • Tool Preseter System for SL-10
  • Chip Auger for SL-10
  • Cooling Unit System for Control.
  • Metric bolt-on turret for SL-10

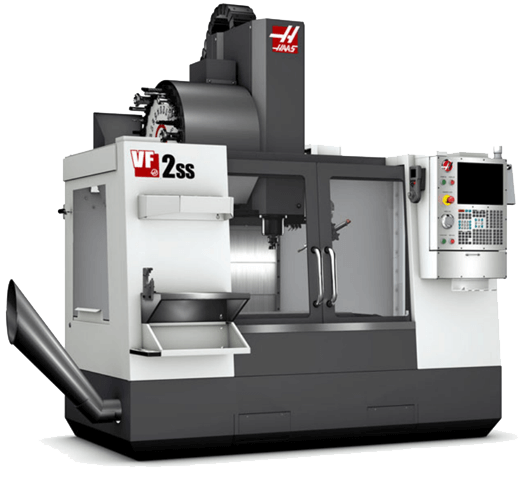

    Machine Informaion : Model VF-2 SS
  • Travels(XYZ)
  • 762 x 406 x 508 mm.
  • Tools Capacity
  • Tool changer(24+1 tools)
  • Table
  • 914 x 356 mm.
  • Max. Tool Diameter
  • 76 mm.
  • Max. Load on table
  • 680 Kg.
  • Machine Weight
  • 3,629 kg.
  • Spindle Speed
  • 12,000 rpm.
  • Drive System
  • Inline Direct Drive
  • Max. Rating
  • 22,4kW
  • Tool Changer
  • BT40
    • Machine Option Lists
  • 15,000-rpm 40-Taper Spindle
  • Chip Auger System
  • Haas intuitive Programming System.
  • Programmable Coolant Nozzie
  • High - Speed Machining w/Look-Ahead
